Forklifts play a central role in warehouse operations, moving pallets from receiving docks to storage racks, retrieving goods for order fulfillment, and staging products for shipment. The efficiency and safety of these tasks depend heavily on how the warehouse itself is laid out both indoors and outdoors.
When designing or reconfiguring a warehouse, operators should carefully consider the following factors:
- Aisle width and forklift type
- Traffic flow
- Rack placement and height
- Safety zones
- Dock design and outdoor yard space
- Charging and fueling stations
- Future scalability
Let’s take a closer look at why each of these elements matters and how they come together to create an efficient, forklift-friendly warehouse.
1. Aisle Width and Forklift Type
The type of forklift in use dictates how much space is needed to turn safely. Counterbalance forklifts require more room, while reach trucks or very narrow aisle (VNA) forklifts can operate in tighter spaces. If aisles are too narrow, forklifts risk collisions with racks or products, slowing down operations and creating safety hazards. If aisles are too wide, valuable storage capacity is wasted on unused floor space. Striking the right balance between these extremes ensures smooth forklift operation while making the most of the available warehouse footprint.
2. Traffic Flow
Just as important as aisle width is the overall traffic flow of the warehouse. Efficient traffic flow allows forklifts to move seamlessly between receiving, storage, picking, and shipping. One-way lanes help reduce head-on encounters, while cross-aisles give forklift operators shorter travel routes and alternative paths. Designing looped or circular flows prevents dead ends, and clear separation between pedestrian walkways and forklift lanes further enhances safety. A warehouse with well-planned traffic flow allows forklifts to spend less time navigating and more time moving products.
3. Rack Placement and Height
Rack design and placement also directly affect forklift efficiency. Racks must be matched to forklift capabilities, particularly in terms of lift height. Storing heavier goods on lower levels
reduces strain on forklifts and minimizes safety risks, while placing high-velocity products closer to packing and shipping areas cuts down on unnecessary travel. In essence, smart rack placement makes products easier and faster to access, which directly supports smoother forklift operations.
4. Safety Zones
Safety should be built into the warehouse layout from the start, not added as an afterthought. Clear and well-marked pedestrian walkways keep foot traffic separate from forklift lanes, reducing the risk of accidents. Emergency exits must remain unobstructed, and proper signage combined with adequate lighting ensures high visibility throughout the warehouse. When safety is integrated into the design, forklifts can operate efficiently without compromising worker wellbeing.
5. Dock Design and Outdoor Yard Space
The dock area is one of the busiest parts of any warehouse, making its design especially important for forklift navigation. Staging areas near dock doors provide forklifts with room to maneuver during loading and unloading. When dock doors are properly aligned with interior staging zones, forklifts avoid unnecessary turns and delays.
Outdoor yards and driveways also play a critical role. Adequate turning radii and clear staging areas outside help forklifts transition smoothly between trucks, containers and the warehouse floor. Adding dock levelers and ramps allows forklifts to move safely and efficiently between vehicles and warehouse interiors. With a well-designed dock and yard layout, truck turnaround times and forklift efficiency improve significantly.
6. Charging and Fueling Stations
Another often-overlooked factor is the placement of forklift charging and fueling stations. If these are positioned poorly, operators can lose valuable time traveling long distances or waiting in congested areas. Stations should be placed in accessible but low-traffic zones to minimize disruptions, while also meeting safety requirements by staying away from flammable goods and heavy pedestrian traffic. A strategically planned charging and fueling area ensures that forklifts remain available when they are needed most.
7. Future Scalability
Finally, warehouses should always be designed with future needs in mind. Over time, product volumes may increase, storage systems may expand, and forklift technology may evolve. Allowing flexibility in aisle widths, leaving space for additional racking, and planning for more charging stations can help a warehouse adapt to changing conditions without requiring costly redesigns. Scalability ensures that a warehouse layout remains efficient and relevant as operations grow.
How AutoTURN Online Helps

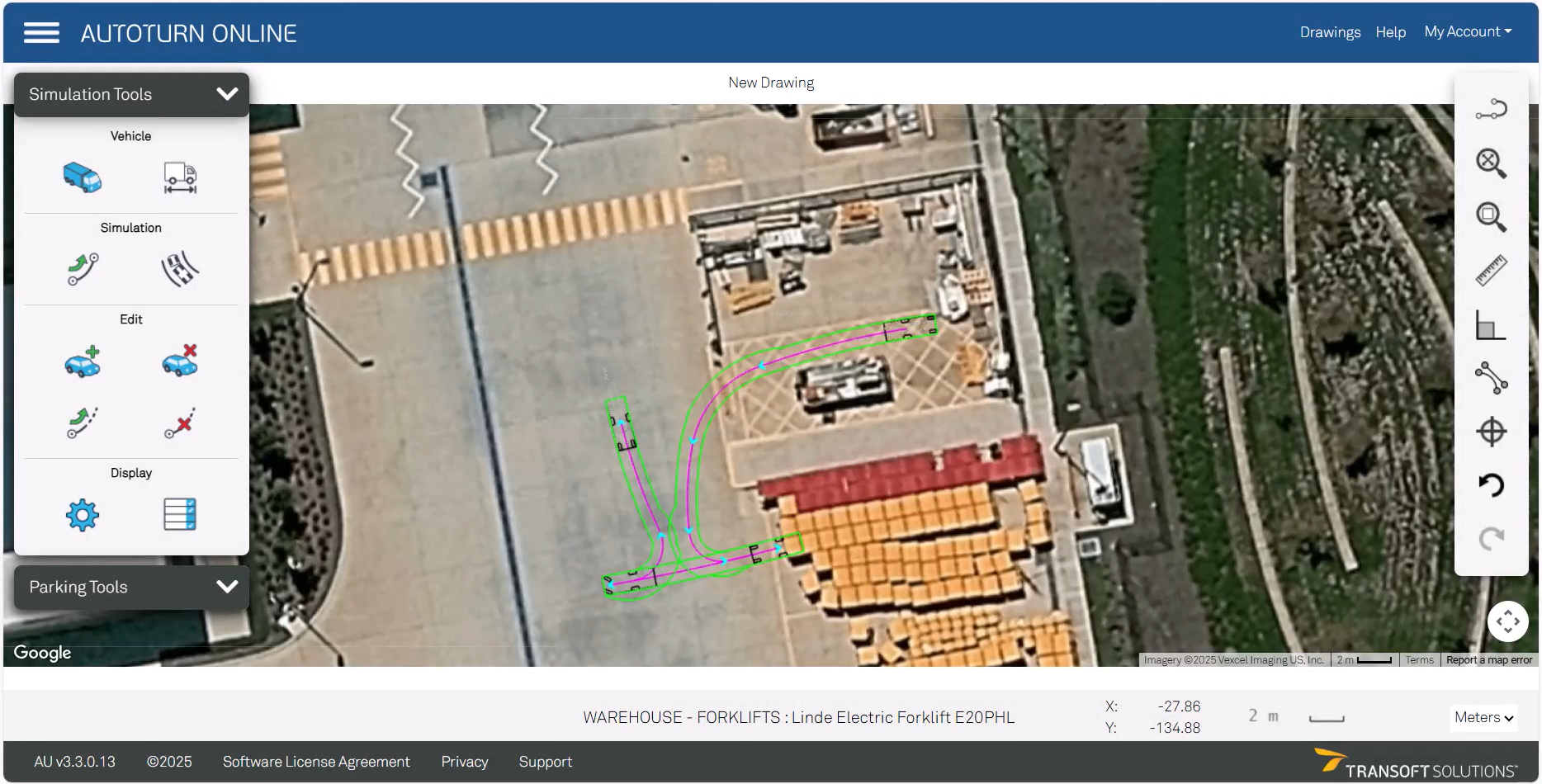

Figure 1. Forklift simulation demonstrated in AutoTURN Online
Traditionally, many of these factors, from aisle width to traffic flow, were tested only after racking and equipment were installed. Fixing issues at that stage can be both disruptive and expensive. Transoft Solutions’ AutoTURN Online provides a smarter way to plan.
With AutoTURN Online, a web-based swept path analysis tool, designers and planners can simulate forklift turning paths using precise vehicle dimensions, test aisle widths virtually to strike the right balance between storage density and maneuverability, and visualize traffic flow to identify potential bottlenecks. The tool also helps validate dock layouts, outdoor yard maneuvering, and safety zones before implementation, giving designers and planners confidence that their designs will work effectively in practice.

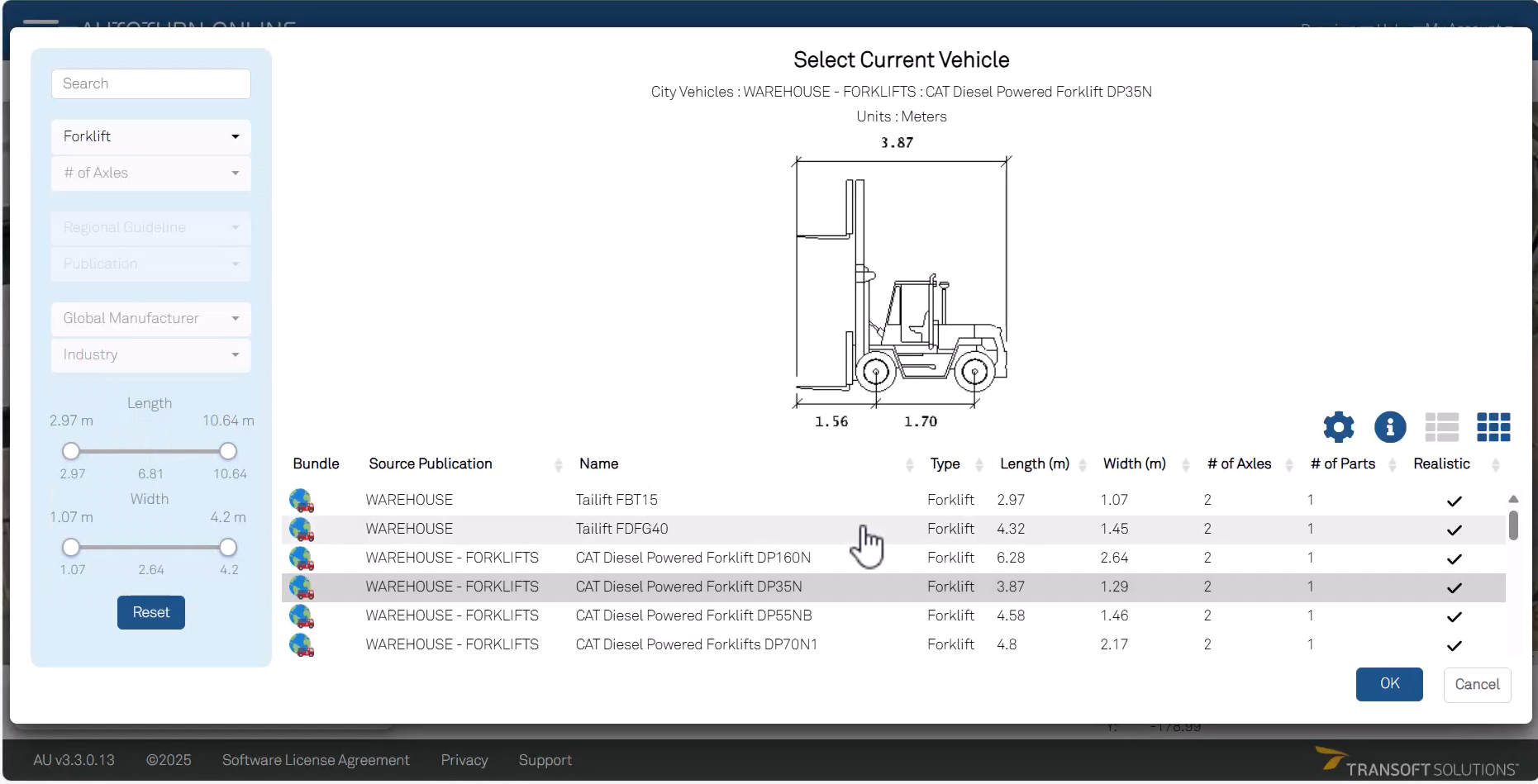

Figure 2. Choosing a forklift vehicle in AutoTURN Online
To find out more about AutoTURN Online and how it can support your warehouse planning journey, whether it’s testing aisle widths, optimizing forklift routes, or improving overall safety, click here to learn more.
